Vantrue S1

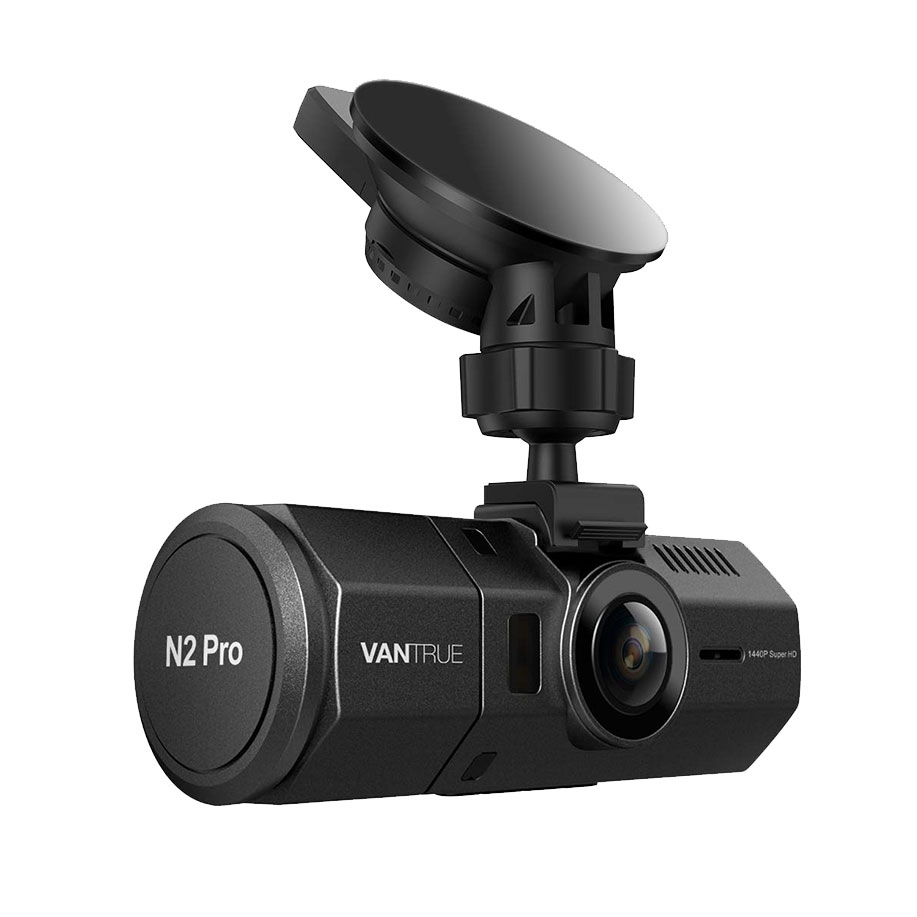

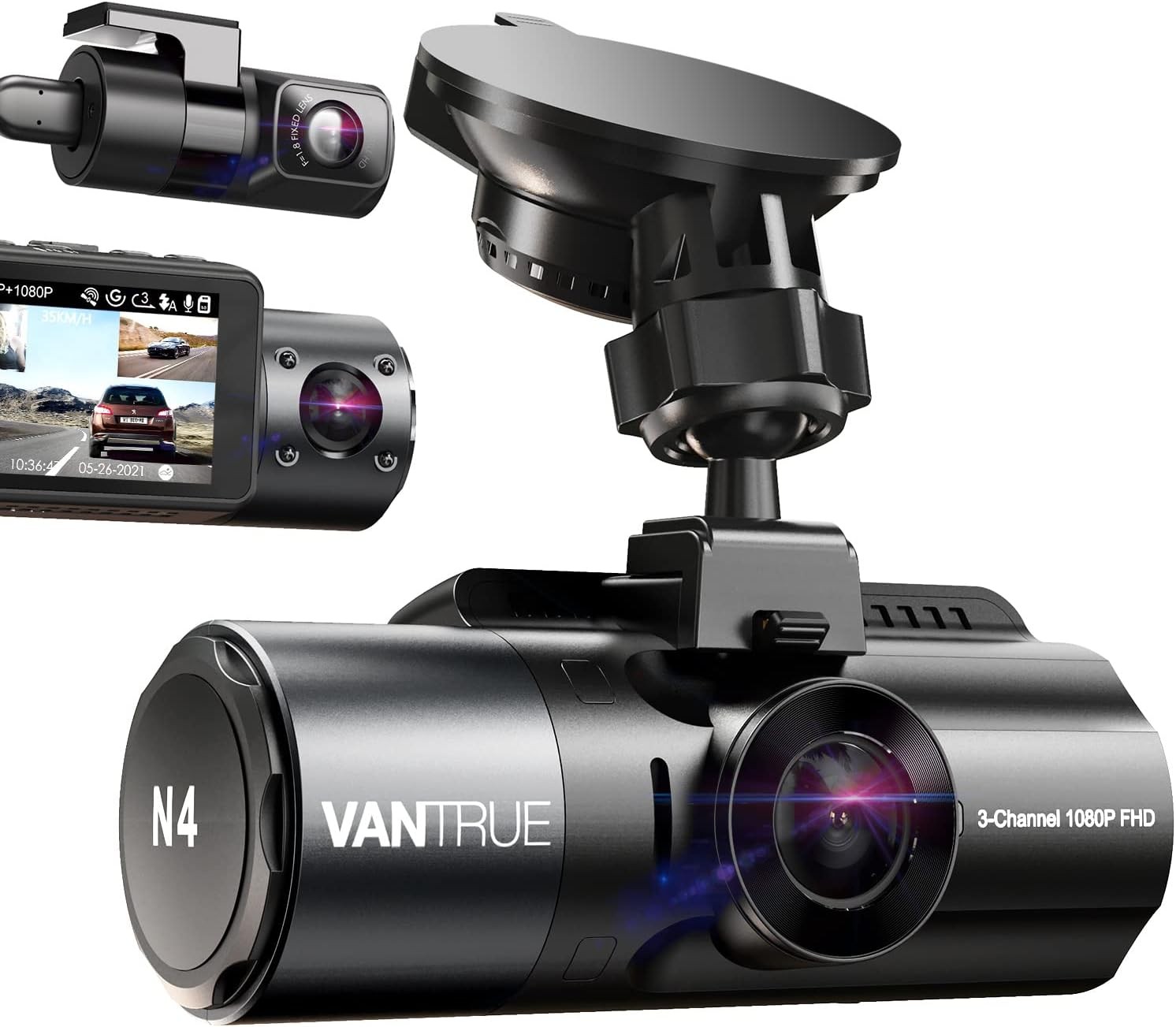

	Vantrue N2 Pro Uber Dual 1080P Dash Cam	Vantrue X4S dual 4k+1080P Dash cam	Vantrue N1 Pro 1080P Mini Dash Cam	Vantrue N4 Three Way Dash Cam	Vantrue S1 Front and Rear	Vantrue M2 2.5K Mirror Dash Cam
Resolution	Dual:1920*1080 30fps, Single Front 1920x1080 60fps or 2560x1440 30fps	Dual:4K+1080P@30fps, Single Front:4K 2160P@30fps/1440P@60fps/1080P@120FPS	1920x1080 30fps	Three Way: 1440P+1080P+1080P Dual: 1440P+1080P Single Front: 1520P	Dual:1920x1080 30fps, Single Front 28802160P 24fps or 19201080P 60fps	Dual: 1440P + 1080P 30FPS
Camera Type	Front+Inside	Front+Rear	Front	Front+Inisde+Rear	Front+Rear	Front+Rear
Lens	F/1.8,170°+ F/2.0, 140°	F/1.7,131°+ F/2.0, 131°	F/1.8, 160°	F/1.4,155°+ F/2.0, 165°+F/1.8, 160°	F/1.47,170°+ F/1.8, 160°	F/1.55,148°+ F/1.8, 140°
Display	1.5 inch	3 inch	1.5 inch	2.45 inch	2 inch	12 inch
Battery & Charging	Built in battery	Supercapacitor	Built in battery	Supercapacitor	Supercapacitor	Supercapacitor
GPS Logger	Optional	Optional	Optional	Optional	Optional	Optional
Storage	Up to 256GB MicroSD Card	Up to 256GB MicroSD Card	Up to 256GB MicroSD Card	Up to 256GB MicroSD Card	Up to 256GB MicroSD Card	Up to 256GB MicroSD Card
Microphone & Speaker	✓	✓	✓	✓	✓	✓

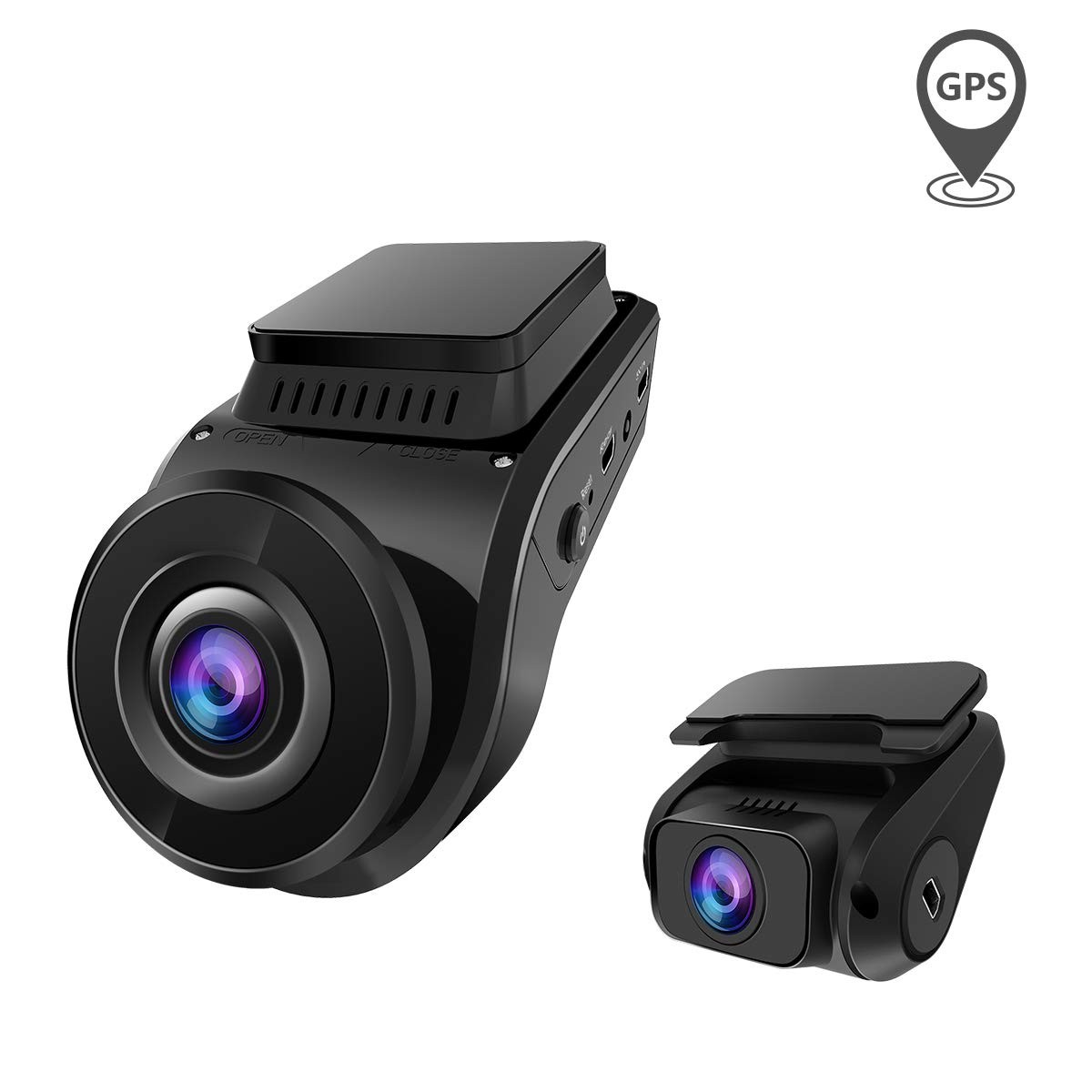

The Advantages of Vantrue S1 Front and Rear 1080P dash cam:

· Higher Resolution: With a resolution of 4k 2880x2160P 24fps or 1920x1080P 60fps in a single recording, you’ll be able to see every detail. And both cameras simultaneously record front and rear at 1920x1080 30fps, which will comprehensive coverage of the road behind you.

· Built-in Live Speed Display GPS: The GPS function allows you to track the location, speed( KMH/ MPH), driving route, date, and time stamp embedded on the recorded footage provides further additional evidence.

· Heat Resistant: The built-in super capacitor saves the dash camera from extreme climates and prevents it from exploding.

· Sony Night Vision: The S1 Dash Cam uses superior night vision capabilities to capture every detail of your surroundings in low-light conditions.

· Hidden Design: The compact size will not obstruct the view, but provides clear imagines or videos.

· Larger memory capacity: This supports external memory capacity up to 256GB which is enough for storing hours of footage recorded in your car.

Warm Tips:

1.The dash cam supports up to 256GB (class 10, memory card is not included ). Please Don't use Sandisk and Transcend Card. We recommend Vantrue 128GB SD Card (ASIN: B07WXH12TC). Please format the card before first use.

2. For further questions, please feel free to contact our support team. Queries are typically answered within 12-24 hours.

3. Please take off the protective film of the screen and lens before using it.

4. The front and rear camera's view angle can be adjusted for your need.

Dual 1080P Front and Rear Dash Cam

Both cameras simultaneously record front and rear at 1920x1080 30fps, which will comprehensive coverage of the road behind you.


Single 4k Dash Cam Featuring a Sony Starvis sensor, allows you to achieve the best results of shooting video in different conditions and modes of operation. The Single front dash camera records videos up to a resolution of 4k 28802160P/24FPS;19201080P/60FPS during day and night.	Live Speed Recording Built-in GPS module accessory enables the front and rear GPS dash cam to the location and coordinates of the motor vehicle. The logging of such details can be played back showing the car’s location, exact route, speed(KM/H or MP/H) on Google Maps via Vantrue GPS Player. You can easily access your live speed on dash cam during driving.	24 Hours Parking Mode Auto switch to Parking Mode when dual lens dash cam senses no movement in 5 minutes. Triggered by the motion sensor, both cameras will automatically record when people or things come closer in front of the vehicle. Please hardwire it (ASIN: B07V3F1VFX ) or connect it with an external battery pack when parking.


Loop Recording & G-sensor Loop recording overwrites the oldest footage with the newest upon filling a card to capacity. While once the car impacted while driving or in parking mode, the G-sensor will automatically lock the footage to "Event File" to prevent it from being overwritten.	Built-in supercapacitor Built-in supercapacitor instead of lithium battery, which withstands extreme temperatures from -4 to 158°F enables the 2-way dash cam to more reliable, heat-resistant, longer life span than batteries.	Sony Night Vision Combined with the F1.47 large aperture and superior HDR (high-Density Recording) technology, the car dash cam is able to adjust for the light and dark parts of the frame so that your nighttime shots are always clear and vibrant.

Packing List

1X Front dash cam;
1X Rear car camera;
1X 10ft car charger;
1X 3ft mini USB cable;
1X 20ft rear camera cable;
Front and rear camera bracket and the adhesive stickers

Near-360° Solution

Dual Cam Recording: 1920*1080P@30 FPS

Dash camera supports FHD dual-channel recording and adjusts different perspectives as you need, which capture high-definition video from both the front (170°) camera and rear camera(160°) simultaneously and provide powerful evidence in case you have an accident

Specifications:
Image Sensor: Sony Sensor
Lens: Front: 170° Wide Angle F/1.47 six-layer glass lens Rear: 160° Wide Angle F/1.8 six-layer glass lens;
GPS: built-in, Live Speed Display
Power Source: SuperCapacitor
Audio: built-in
Singel Front Recording: 2880*2160P/24FPS;1920*1080P/60FPS;1920*1080P/30FPS;1280*720P/30FPS
Hidden Design: Yes

Vantrue S1 User Manual

No viruses ,,9.7M

Vantrue S1 GPS Player (for windows)

VantruePlayer_V1.23.0321 ,,78M

Vantrue S1 GPS Player (for mac)

VantruePlayer_V1.23.0321 ,,18.9M

Vantrue S1 Dash Cam Firmware Update

VTS10J.V23 ,,2.72 MB

Vantrue S1 Dash Cam Firmware Update Instruction

No viruses ,,16KB

Vantrue S1 Dash Cam Firmware Update (Specially for Japan)

VTS10J.V23_JP ,,2.72M

Reviews

( 562 Reviews )

4.5/5.0

Michael

5.0

best gift to give somebody or yourself, just incase ;)Reviewed in the United States

this dashcam saved me from felony charges i used the dash cam footage against them that shows cops were shady w audio and shows i was wrongfully pulled over and stop was bad. 10/10 recommend. discrete, the police did not know it was there until they watched me pull the memory card from it. get yourself one just incase ;)

noob

1.0

Does not like heatReviewed in the United States

First, I will say that the company sent a long cable for the rear view camera as promised. THis unit is installed in a full sized GMC SUV. Unfortunately, the camera fails in the heat of the desert Southwest. It now stops recording randomly, and cutting power (like unplugging from the cig lighter) no longer shuts down the camera cleanly. It loses the recordings. Pic quality was pretty good though, but for the money, time to look elsewhere. It's a shame, I took a lot of care to mount this thing.

Albert Gertskis

5.0

Works perfectlyReviewed in the United States

Easy installation and picture quality is good. Got into an accident at night in 2018 and the video helped absolve me of any fault. The night time video quality is good enough to see license plates a few car lengths away from you (both front and back). Would highly recommend anyone to purchase this specific dashcam.

Amazon Customer

5.0

Rear facing is Life Saver!Reviewed in the United States

This little camera just earned its badge of excellence. Just proved an accident where it would’ve been word against word. The rear facing is a life saver and is crystal clear video and audio. Guy who hit me tried to lie but this video cam kept a $25k claim off my insurance. I was denied until I sent his insurance company the video. They responded in less than 24hrs they are now accepting responsibility!!!

ahmed

5.0

GoodReviewed in the United States

it's good

See all reviews >

Jennifer Motter

5.0

Works very well03-23-2020

Product impression: It does not look cheap. It’s well built and the outside feels like rubberized. I left it in a car through very hot summer and still no issue.

Very good resolution: See the photos. Both interior and exterior resolutions are good. Interior of my car is black leather and the person is wearing dark blue jacket but the camera still shows a good image. I redacted the face but details are pretty good. Vehicle license plate numbers can be read on 1080P (outside)/1080P(inside). The menu also offers a higher resolution but then it does not offer dual camera views.

Easy setup: Good suction cup/holder is very steady and not shaky. Well built, plug and play as the factory setting is already good for most users. Menu and buttons are simple and easy to understand. Good user interface.

Excellent/responsive customer: Customer support by email is very responsive and genuinely interested in resolving a customer’s concerns and issues. It generally takes 1 or 2 days to response but they do get back to you. They also don’t hesitate to offer exchange a defective dash cam under warranty after trouble shootings.

Optional GPS: Quick fix GPS antenna and enables speed of a vehicle stamps on video files.

Suggestion: Use good quality micro SD cards made for frequent write/delete like SanDisk High Endurance Video Monitoring. Check once in a while to make sure the files are not corrupted. Reformat every 1 or 2 weeks. Keep one extra SD card as backup. Throw away and get a new one if SD cards keep corrupted or turns on/off the dash cam. Also, always use OEM cable and charger. Connect USB directly to the dash cam rather than through the holder or GPS antenna if you are having any power issue. Update firmware only if necessary so that you know if the dash cam experiences some issues you can spot the issue.

Sensor	Sony IMX327 + IMX323 Sensor
Display	2 inch
Lens	170° Wide Angle F/1.47 six-layer glass lens Rear: 160° Wide Angle F/1.8 six-layer glass lens
Languages	English/简体中文/Deutsch/Japanese
Video	Dual:1920x1080 30fps, 28802160P/24FPS;19201080P/60FPS;19201080P/30FPS;1280720P/30FPS
Image	JPEG;
Audio	Built-in microphone and speaker
Memorizer	Internal memory: 4M External: 256GB max(micro SD card of speed rating of U3 higher)
USB Port	USB2.0, mini
Battery	Supercapacitor
Compatible OS	Windows XP/Vista/7/8/10 &Mac OS
